Radiator Header Plates
Radiator header plates locate tube ends and form the interface to a matching tank or header assembly. Plate design must be coordinated with tube spacing, sealing and the selected joining method.
STANDARD PRODUCT SUMMARY
Details used for quotation
- Product reference
- APC-CAT-125
- Catalog group
- Radiator Header Plates
- Specification status
- Select the required variant; critical specifications are confirmed before order
- Material
- Confirmed to the selected radiator construction
- Sizes / variants
- Plate length, width, thickness and tube-hole layout
- Intended application
- Radiator header plates locate tube ends and form the interface to a matching tank or header assembly
- MOQ
- Quoted for the selected specification and quantity
- Sample
- Request availability for the selected variant
- Packaging
- Packing format confirmed with the order
- Customization
- Send a drawing, sample or marking requirement for review
- Lead time
- Confirmed after specifications and quantity are agreed
Catalog information is a sourcing reference. Critical dimensions, materials, application, test requirements and commercial terms are confirmed for the selected product before an order is placed.
Product selection and specifications
| Selection point | Product information |
|---|---|
| Material | Confirmed to the selected radiator construction |
| Size options | Plate length, width, thickness and tube-hole layout |
| Tank interface | Crimp-tab or joined construction matched to drawing |
| Supply format | Drawing-matched plate or agreed sample reference |
How to select the right version
Provide the plate drawing, tube cross-section, hole pitch and tank-interface detail. Identify gasket or solder/braze requirements and any forming features.
Application notes

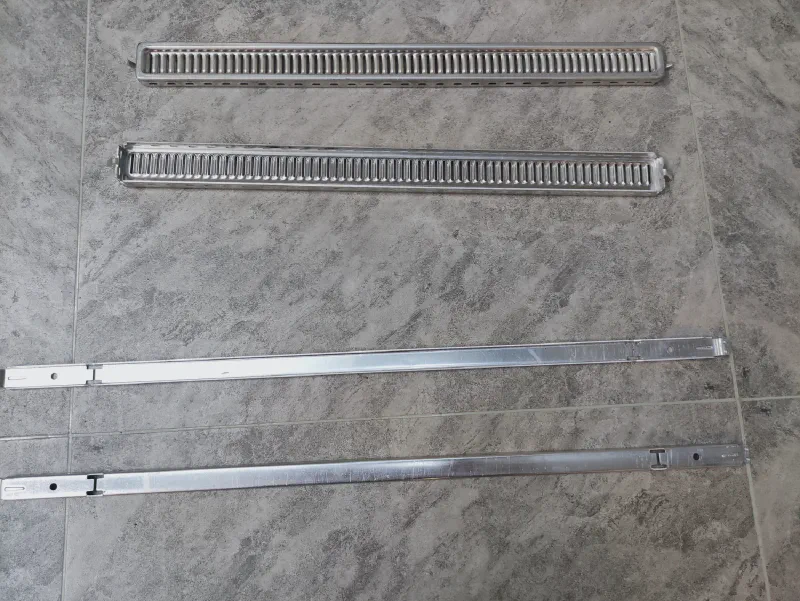

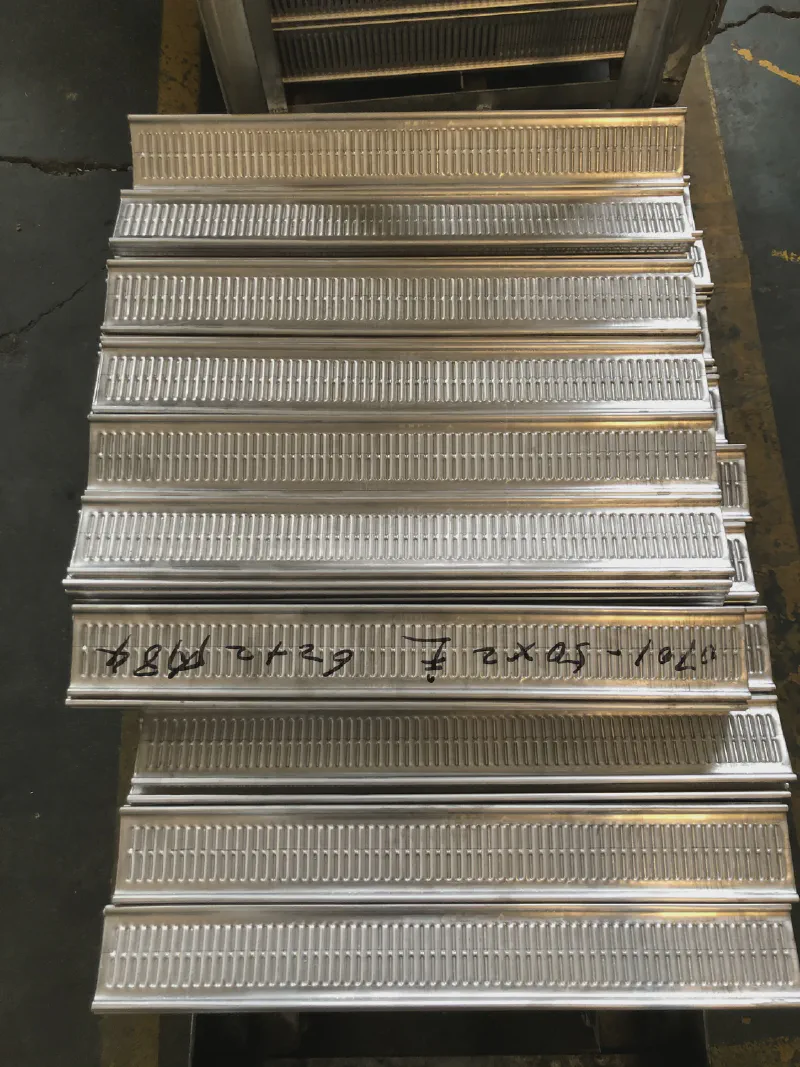

The examples show particular plate layouts; they do not define a universal replacement plate or an available dimension range.
Wholesale supply and quotation
Send the selected specification, quantity, destination and packing requirements. Include a photo, drawing or sample reference when dimensions or material compatibility need to be matched. We will confirm the selected version, sample availability and supply terms for your inquiry.
Request a quotation or browse the Radiator Header Plates category for related products.
