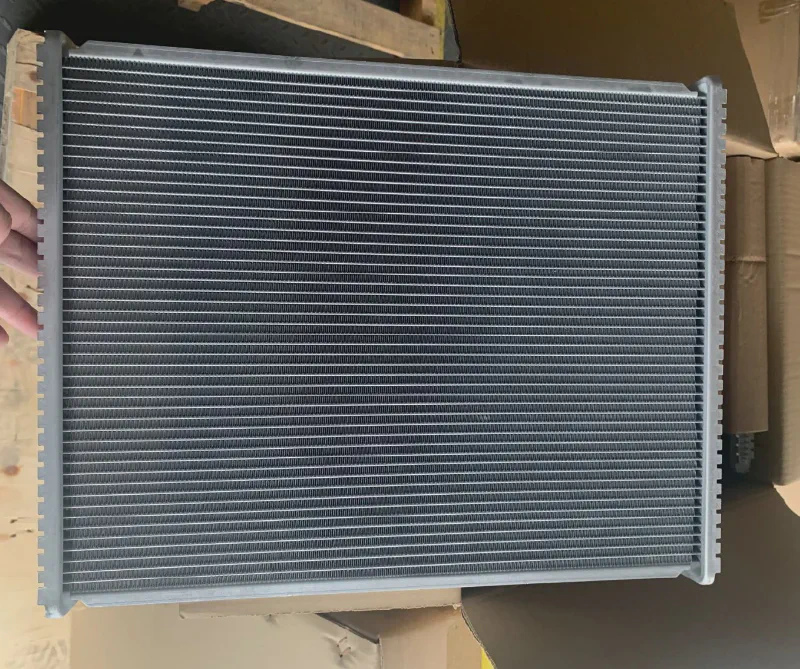

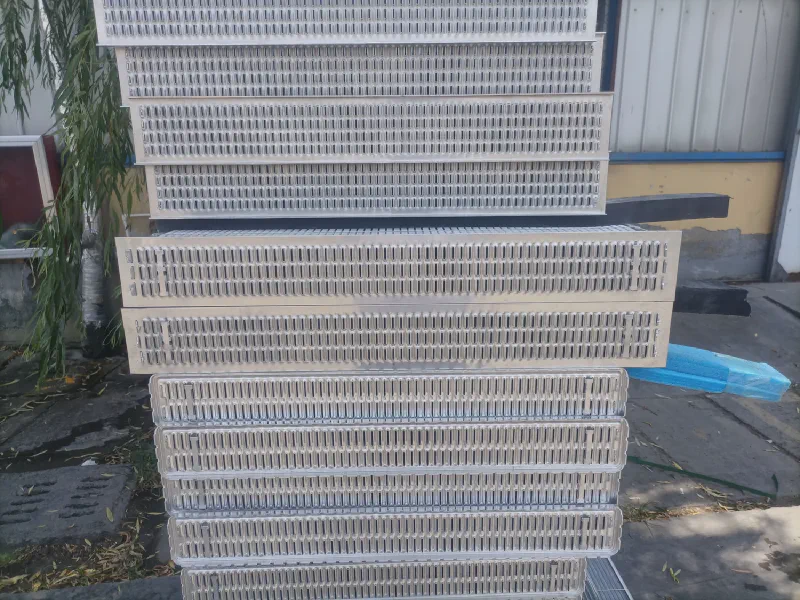

Aluminum Radiator Replacement Cores
Aluminum replacement cores are supplied as a drawing-based product family for radiator repair and fabrication projects. Core size, header geometry and tank connection determine the matching requirements.
STANDARD PRODUCT SUMMARY
Details used for quotation
- Product reference
- APC-CAT-122
- Catalog group
- Replacement Radiator & Cooler Cores
- Specification status
- Select the required variant; critical specifications are confirmed before order
- Material
- Aluminum core assembly; alloy details confirmed per design
- Sizes / variants
- Core height, width, thickness and tube arrangement
- Intended application
- Radiator rebuild or assembly matched by drawing
- MOQ
- Quoted for the selected specification and quantity
- Sample
- Request availability for the selected variant
- Packaging
- Packing format confirmed with the order
- Customization
- Send a drawing, sample or marking requirement for review
- Lead time
- Confirmed after specifications and quantity are agreed
Catalog information is a sourcing reference. Critical dimensions, materials, application, test requirements and commercial terms are confirmed for the selected product before an order is placed.
Product selection and specifications
| Selection point | Product information |
|---|---|
| Material | Aluminum core assembly; alloy details confirmed per design |
| Size options | Core height, width, thickness and tube arrangement |
| Header interface | Confirm plate dimensions, tabs and sealing geometry |
| Application | Radiator rebuild or assembly matched by drawing |
How to select the right version
Send a dimensional drawing showing core envelope, tube rows, header dimensions and tank connection. Include equipment application and requested leak-test or performance requirements.
Application notes
No vehicle/year compatibility is assigned to these example cores. A visual resemblance is insufficient for dimensional or thermal approval.
Wholesale supply and quotation
Send the selected specification, quantity, destination and packing requirements. Include a photo, drawing or sample reference when dimensions or material compatibility need to be matched. We will confirm the selected version, sample availability and supply terms for your inquiry.
Request a quotation or browse the Replacement Radiator & Cooler Cores category for related products.
